Kryptex × GMiner ASIC Firmware

More hashrate, more efficiency.

Features

Performance & Overclocking

Includes autotuning with customizable overclocking profiles, automatic profile switching based on temperature, real-time monitoring and recovery of chip performance, and manual fine-tuning of chip frequencies.

Cooling & Stability

Automatic and manual cooling control (target temperature, fan speed), along with watchdogs for monitoring temperature, performance, PSU voltage, and the cooling system.

Management & Reliability

A single universal firmware for all supported devices, with options to back up, restore, and reset configurations, and support for both automatic and static network settings.

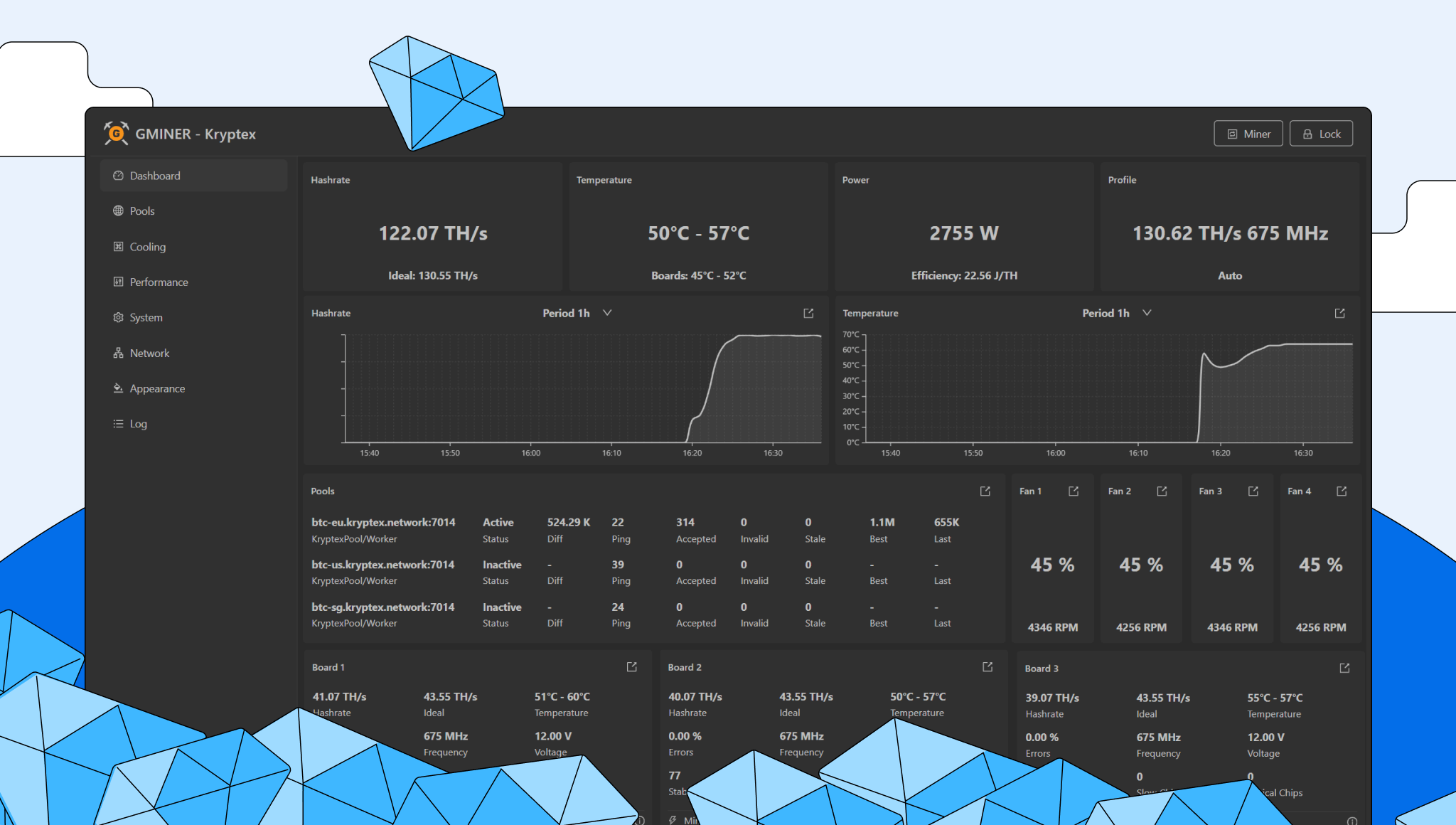

User Interface

Displays chip temperatures and power consumption, features an interface in English and Russian, and offers customizable day and night UI modes.

Installation

Step-by-Step Guide

Important! to install Kryptex x GMiner firmware use Toolkit, ASIC firmware should be before march 2024 Step 1

Download Firmware Toolkit

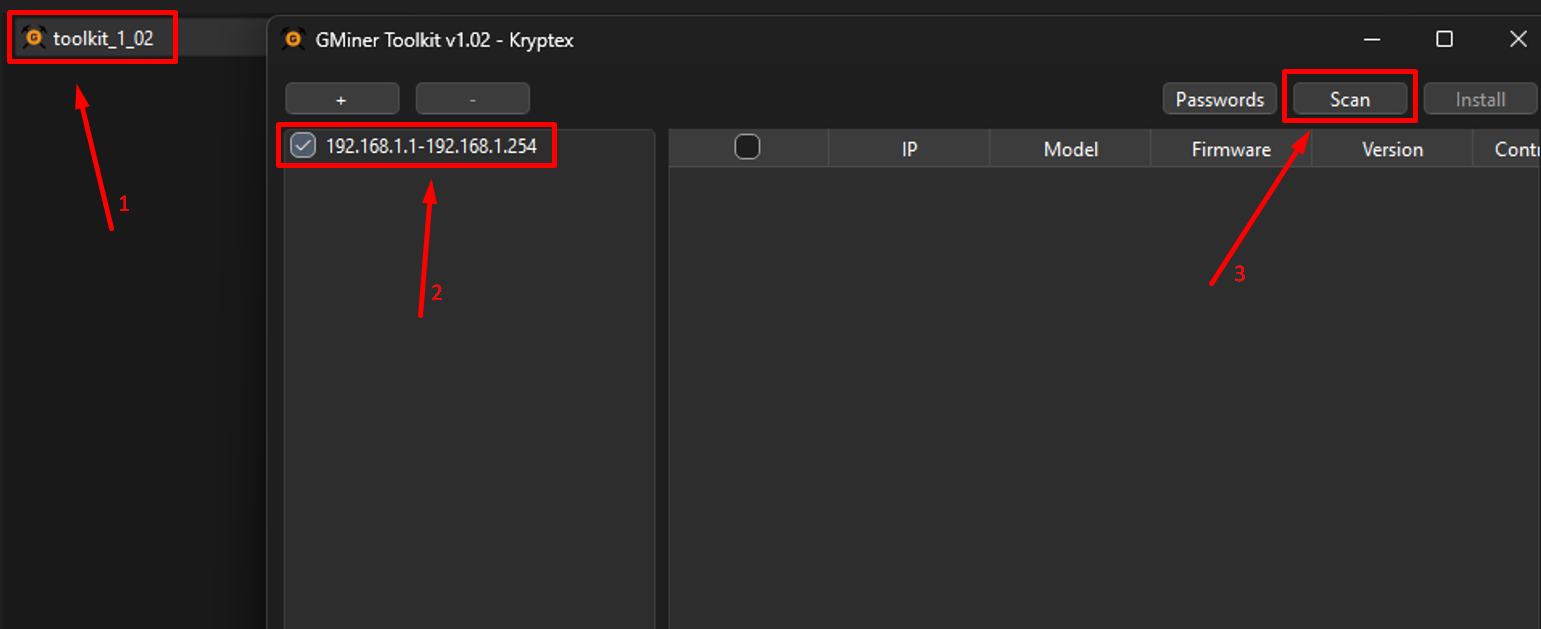

Step 2

Open the Toolkit → click “New Group” → enter a group name and the local IP address range → click “OK”, then “Scan Local Network”

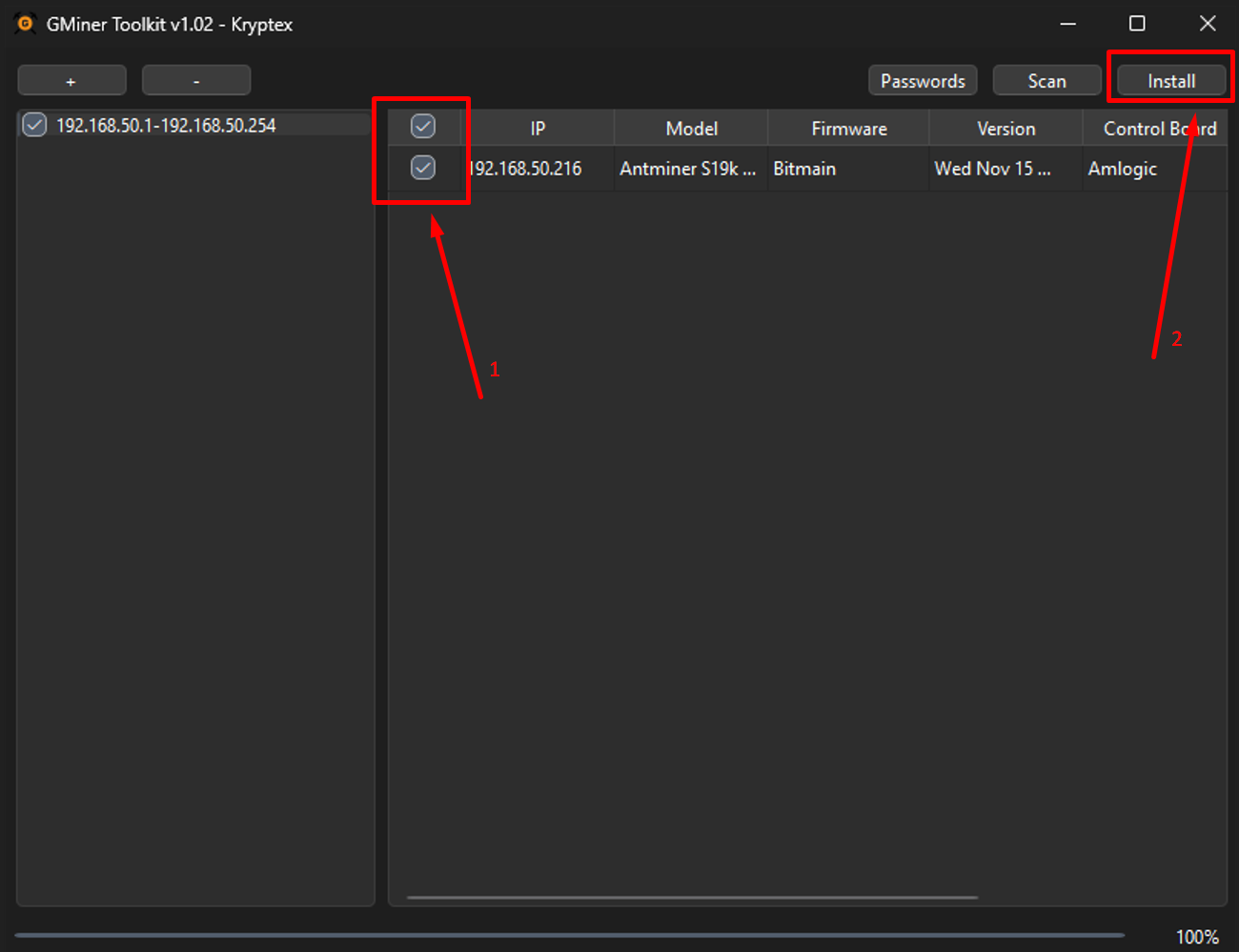

Step 3

Select the new group, choose the ASIC from the list, and click “Install Firmware”

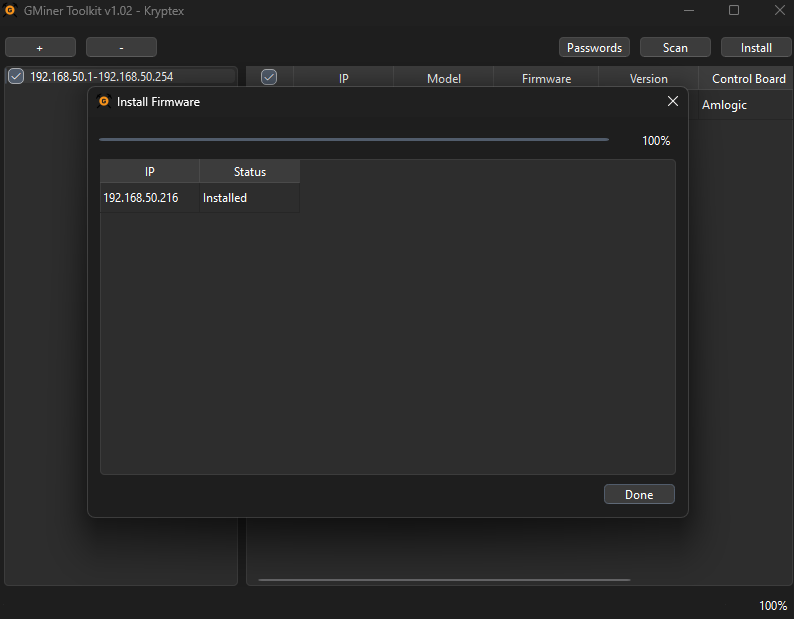

Step 4

Wait for the installation to complete, then click “Done”

That’s it – the new firmware is flashed and your miner will reboot automatically.

Supported Hardware

S19: BHB42801, BHB42803, BHB42811, BHB42821, BHB42831, BHB42841
S19 Pro: BHB42641, BHB42651
S19j+: BHB42701
S19j Pro: BHB42601, BHB42603, BHB42621, BHB42631, BHB42632
S19j Pro+: BHB42611, BHB42612
S19 XP: BHB56601, BHB56701, BHB56801, BHB56802, BHB56806
S19j XP: BHB56804, BHB56807, BHB56814
S19k Pro: BHB56901, BHB56902, BHB56903
S21: BHB68601, BHB68603, BHB68606
T21: BHB68701, BHB68703, BHB68705
S21 XP: A3HB70501
S21 Pro: A3HB70601
sS21+: A3HB70701

Supported Control Boards

BeagleBone
Xilinx 7007
Amlogic

DevFee GMiner

Changelog

1.13 (latest)

+Added the ability to install GMiner on Bitmain stock firmware from late February 2024, including firmware from 2025 (no longer required to downgrade the stock device to an older firmware version)

+Improved logic for returning from a backup pool to the main

+Added S21+ submodels support: A3HB70702, A3HB70703

1.12

+Improved logic for switching to backup pools, detects domain blocking by the provider and switching to the next pool

+Reworked the option to ignore broken temperature sensors. Now, at least one working temperature sensor is required for mining. Specifying a minimum number of working sensors is no longer required

+Added an option to enable/disable DNS over HTTPS, allowing you to hide pool addresses from the provider

1.11

+Added power efficiency mode for T21/S21/S21+/S21 Pro/S21 XP, it can be enabled in performance section. In our tests this mode improved power efficiency by 0.5-1J/T (S21+ 235T)

1.10

+Improved performance optimizer in mining mode

1.09

Miner:

+Added option to disable performance optimization after auto-tuning and in manual mode

+Added option to ignore abnormally slow chips during auto-tuning and during performance monitoring

Toolkit:

+Fixed bug that could cause random operation failures (update, configuration, reboot, etc
